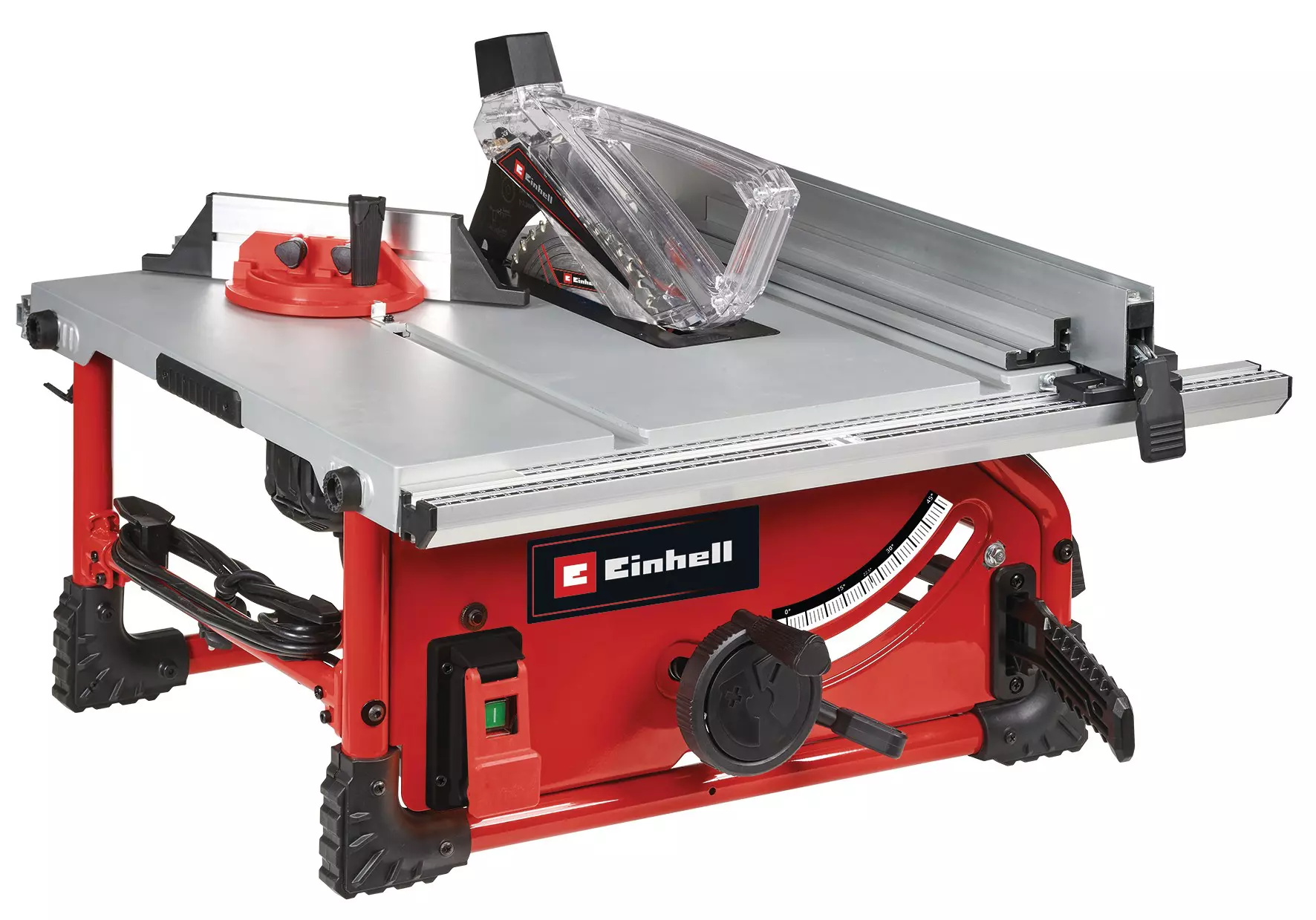

Table Saw

TE-TS 254 T

Item no.: 4340430EAN: 4006825659160
  • With Softstart-smooth start-up places the motor under less stress
  • Aluminium main table with exact surface for easy cuts

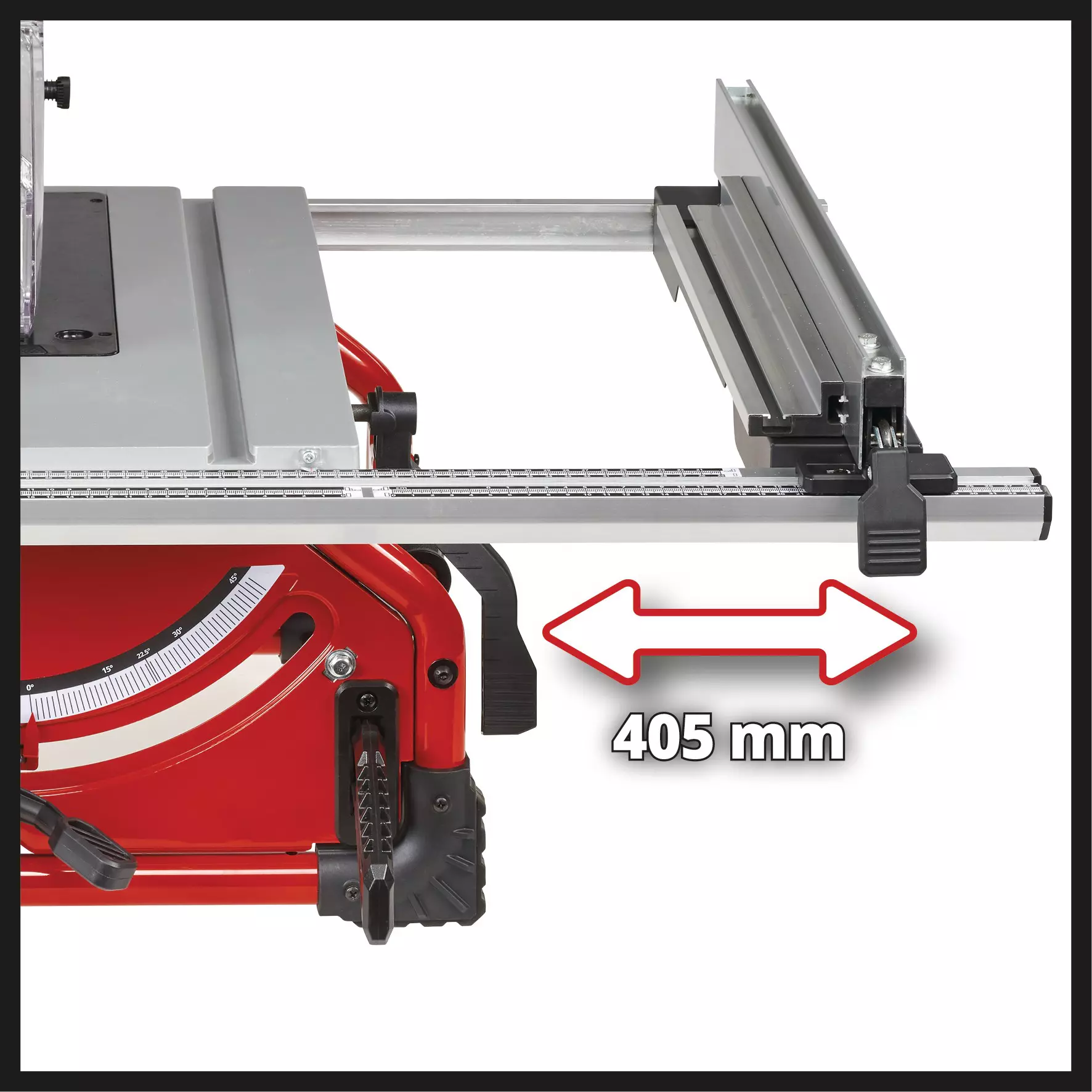

  • Quick-adjust table width extension for workpieces <660 mm
  • Parallel stop with eccentric clamp and angle stop (+/-60°)

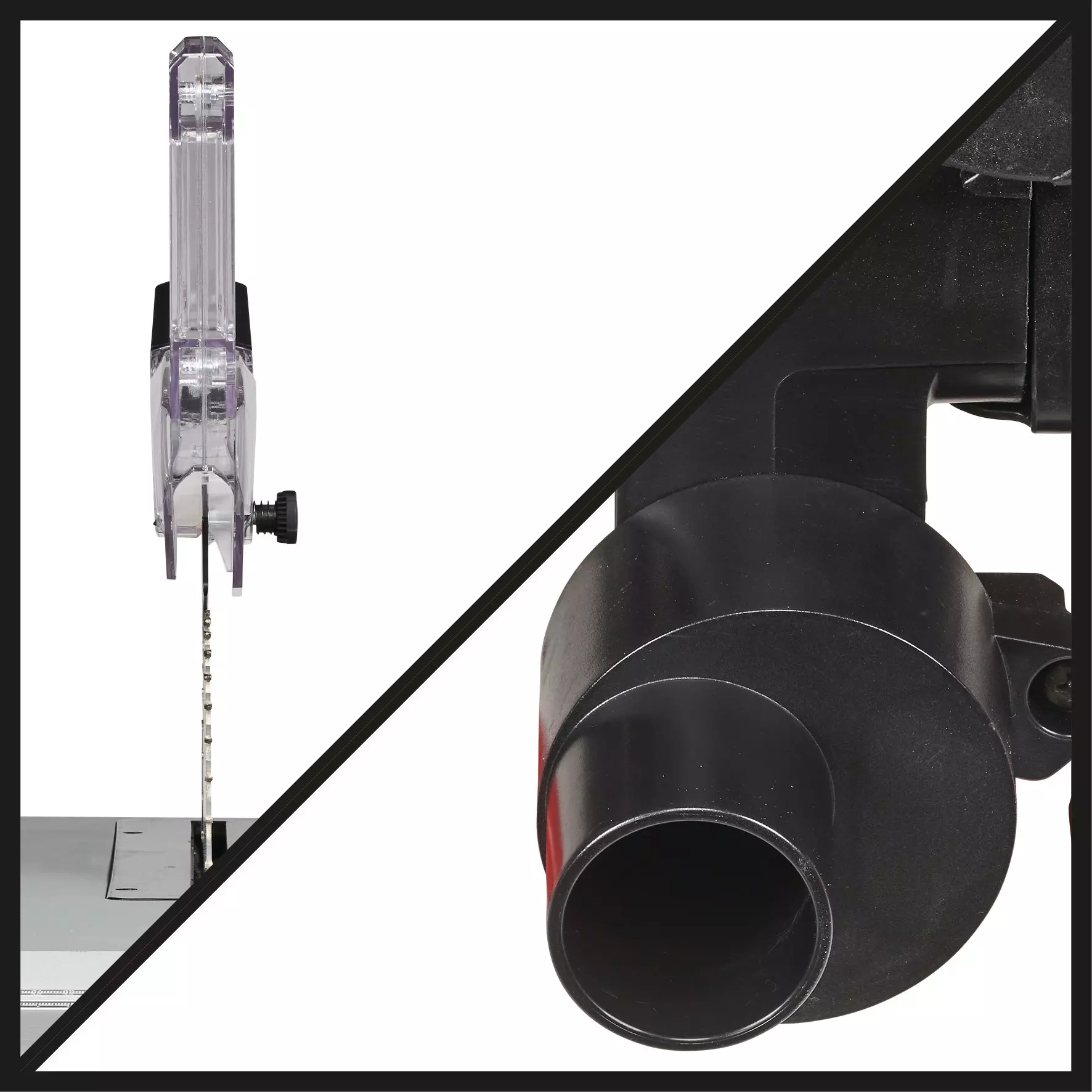

  • Housing with chip extractor connection for a clean workplace
  • Transparent blade guard with optional chip extractor connection
  • Tool-less splitter adjuster can be lowered during transport
  • Compact design with integrated handles for easy transport

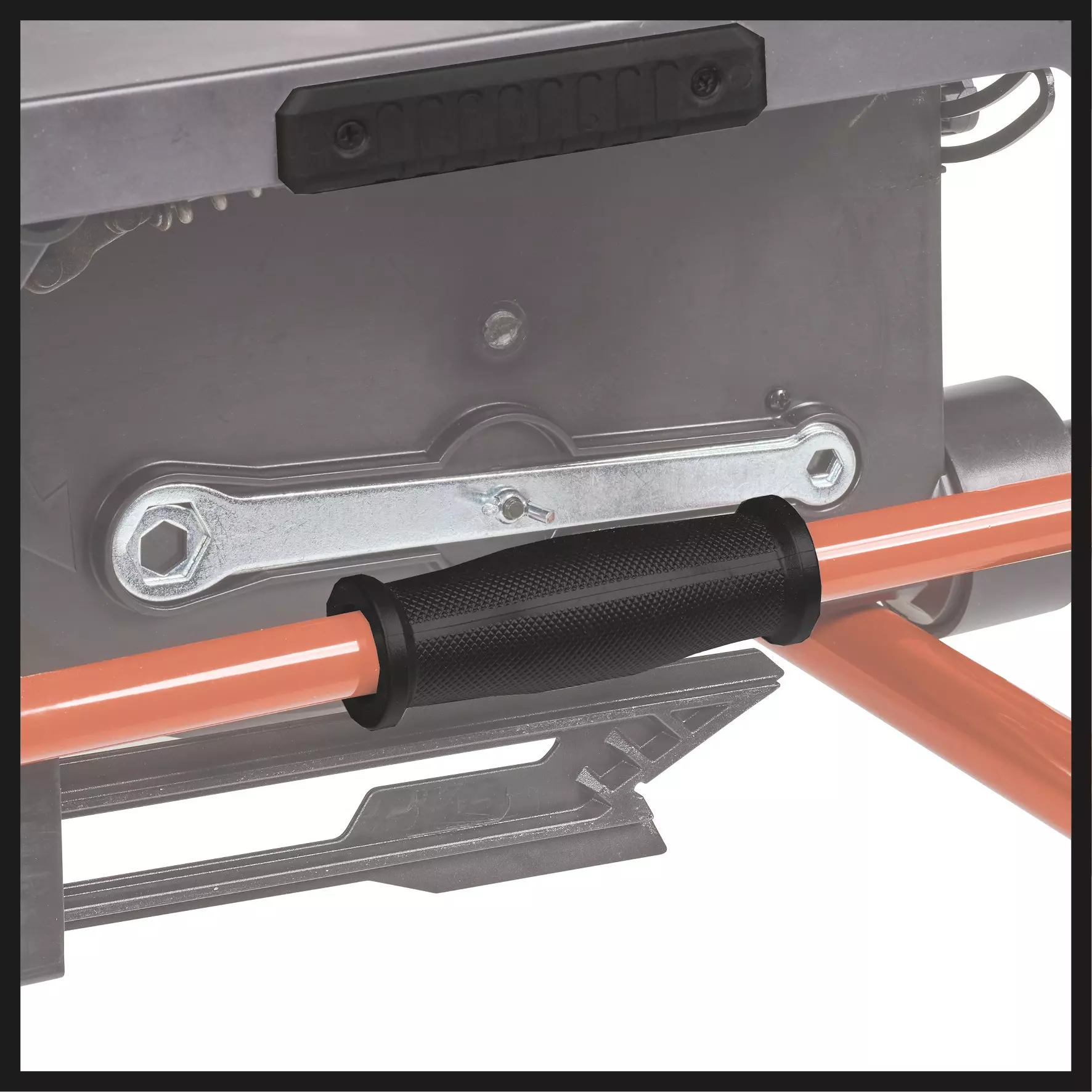

  • Holders for accessories and cables are provided on the housing
  • Overload switch for protecting the motor against damage
See more information
productimage
Article description

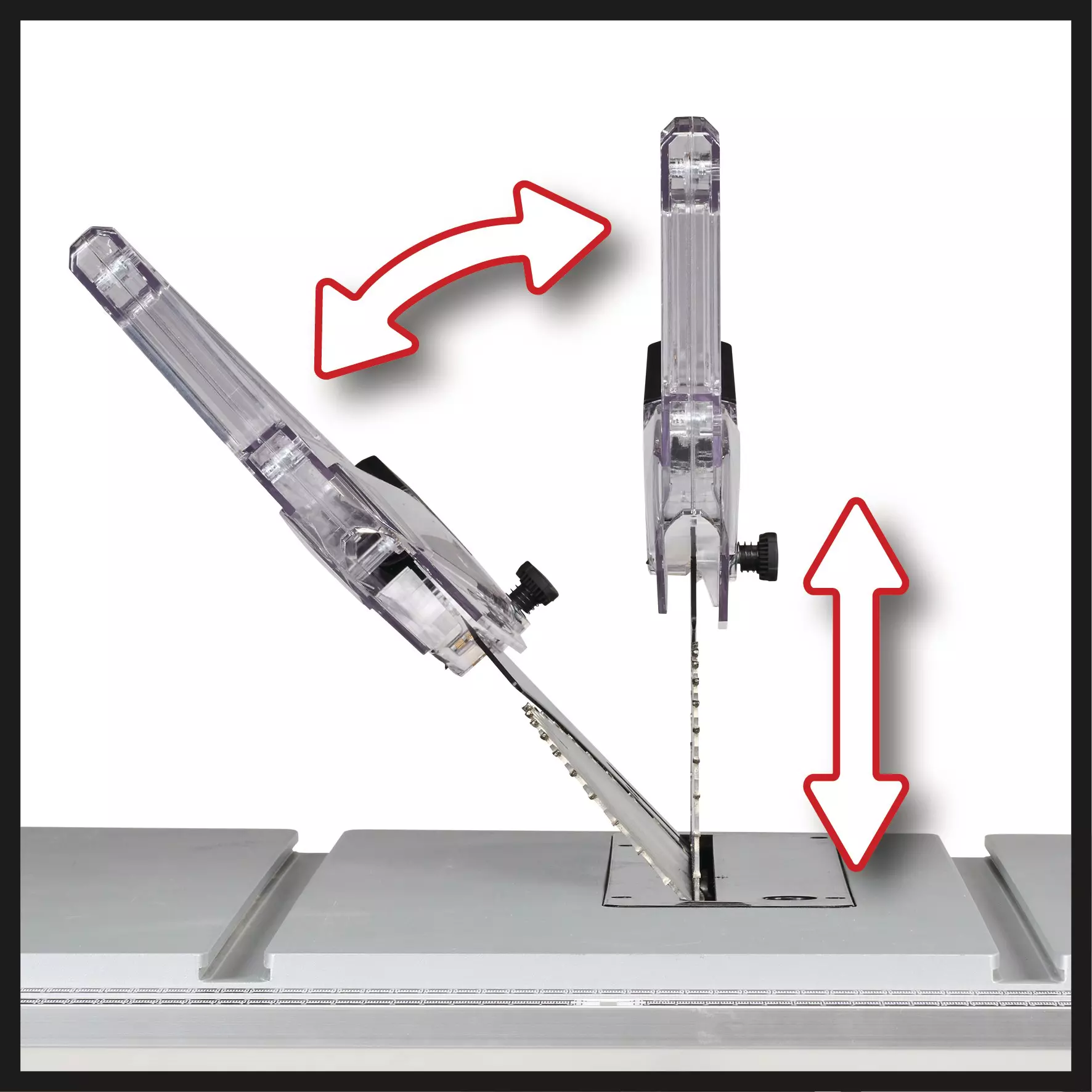

The Einhell circular table saw TE-TS 254 T ensures fast, clean cuts for all tasks in the home, workshop and garage, making it essential equipment for every amateur DIYer. Whether plywood or panels are to be cut to size or beams and boards must be shortened and cut: The circular table saw masters its tasks thanks to a swivelling saw blade (up to 45°) and a stepless height adjustment (max. cutting height at 45°: 63 mm/max. Cutting height at 90°: 89 mm). Equipped with softstart, the quiet start-up protects the motor. The aluminum main table with exact surface allows simple and precise cuts. The quickly adjustable table widening is designed for workpieces up to 660 mm. The rip fence is equipped with eccentric clamping. An angle stop (+/- 60°) is provided. The housing with chip extraction connection (Ø36 mm) makes sure the working space is always clean. The integrated splitting blade can be lowered without tools for easy transport, which is also ensured by the compact design with integrated handles. Brackets for accessories and cables are provided on the housing.

Technical details

Mains supply220-240 V | 50 Hz
Power1800 W
Max. power (S6 | S6%)2000 W | 25 %
Idle speed4700 min^-1
Saw blade254 mm x 30 mm
Number of saw teeth48 Pieces
Swiveling range of saw blade45 °
Max. cutting height at 45°63 mm
Max. cutting height at 90°89 mm
Height adjustment continuous0-89 mm
Diameter of suction adapter36 mm
Size of working table540 mm x 505 mm
Table broadening right540 mm x 80 mm
